Acionamento de Orientação Série WEA

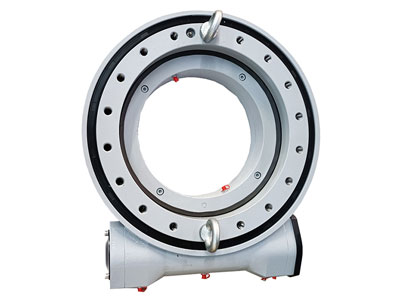

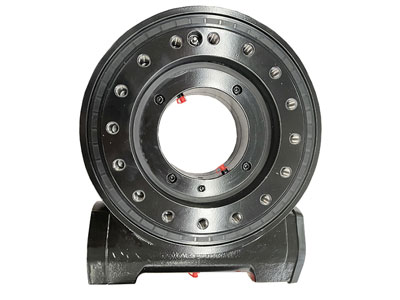

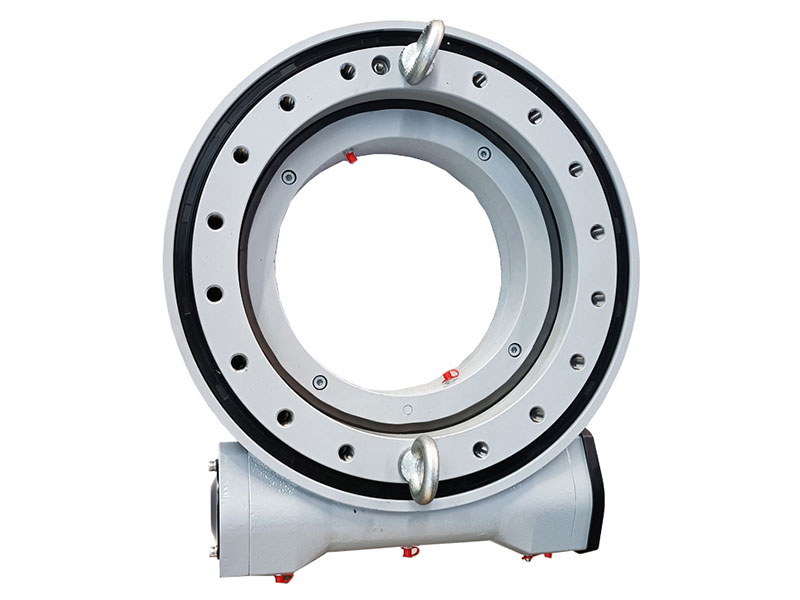

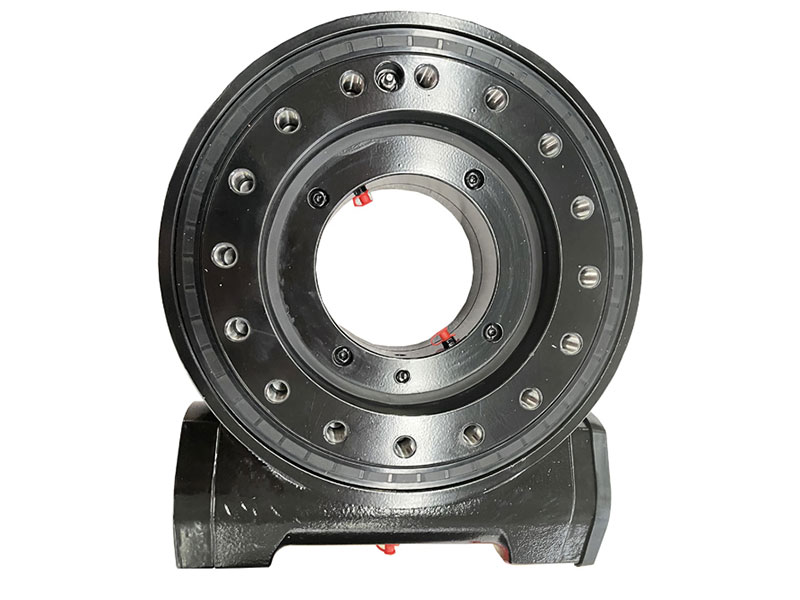

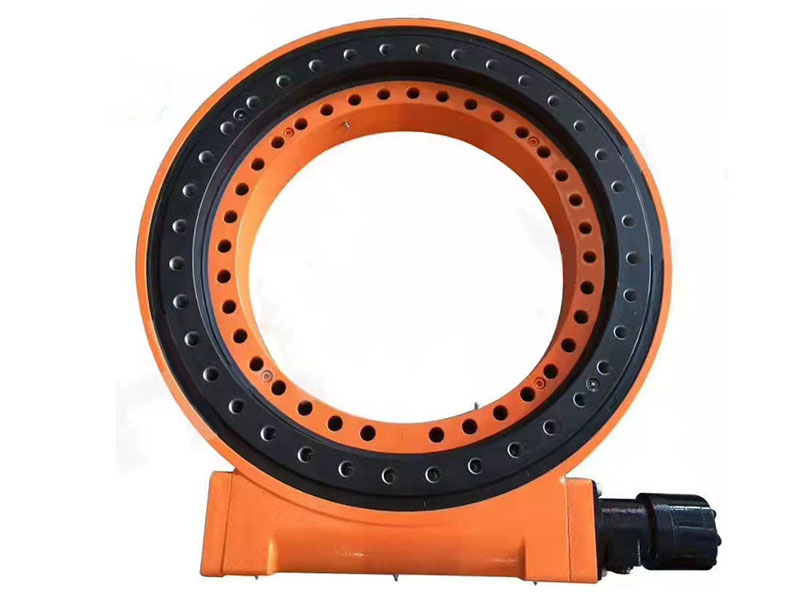

WEA Série slewing drive is a new Série of slewing produto, also named as slewing reducer. It is commonly composed of worm, Rolamento de Orientação, carcaça, motor adapter, end cap and other components. By adopting Rolamento de Orientação as its core component, slewing drive can bear axial force, radial force and Momento de Inclinação simultaneously. Compaanel with SE Série slewing drive, WEA Série have the Vantagens of better protective performance, great transmission torque, better impact resistance and long Vida útil.
WEA Série slewing drive is widely applied in the relatively rotary peças of machinery and solar energy field, incluindo solar tracking system, rotary chassis of aerial working machinery, truck crane, rock drill, Furação machine, grasping wood machine.

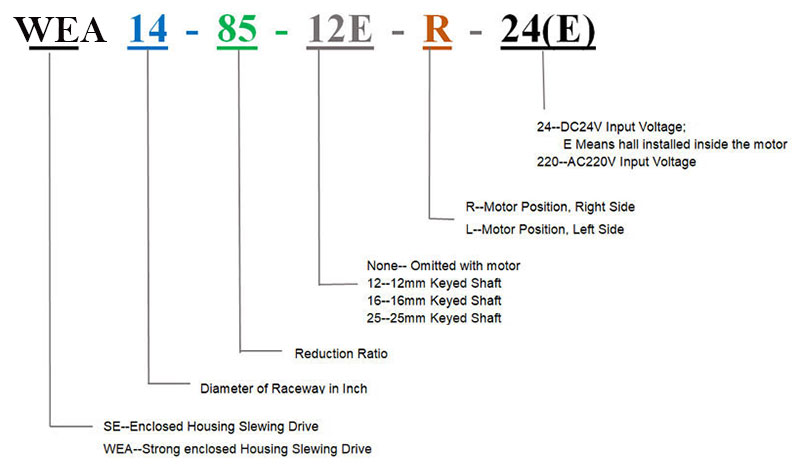

| Modelo | |
|
|
|
|
|
| Rated Output Torque (KN.m) |
8 | 9.5 | 10.8 | 12.96 | 28.7 | 34.2 |
| Momento de Inclinação Torque (KN.m) |
33.9 | 54.3 | 67.8 | 135.6 | 203 | 310 |
| Static Carga Axial (KN) |
550 | 725 | 920 | 1110 | 1595 | 1850 |
| Static Carga Radial (KN) |
205 | 270 | 343 | 414 | 596 | 690 |
| Dynamic Carga Axial (KN) |
130 | 180 | 220 | 268 | 340 | 440 |
| Dynamic Carga Radial (KN) |
110 | 140 | 190 | 220 | 270 | 320 |
| Holding Torque (KN.m) |
38.7 | 43 | 48 | 72.3 | 105.8 | 158.3 |
| engrenagem Ratio | 62:1 | 79:1 | 86:1 | 104:1 | 90:1 | 104:1 |
| Output Speed (rpm) |
＜3 | ＜3 | ＜3 | ＜2 | ＜1.5 | ＜1.5 |
| Slef-locking engrenagems | Yes | Yes | Yes | Yes | Yes | Yes |
| Peso (kg) |
53 | 66.8 | 75 | 96 | 172 | 202 |
Our produto range includes Rolamentos de Precisão in dimensions from Ø 100 mm to Ø 1490 mm.
-

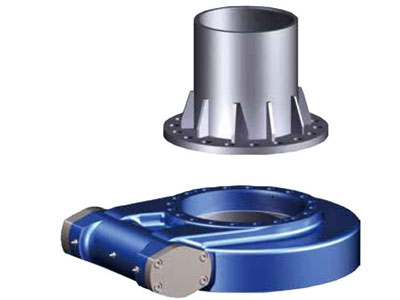

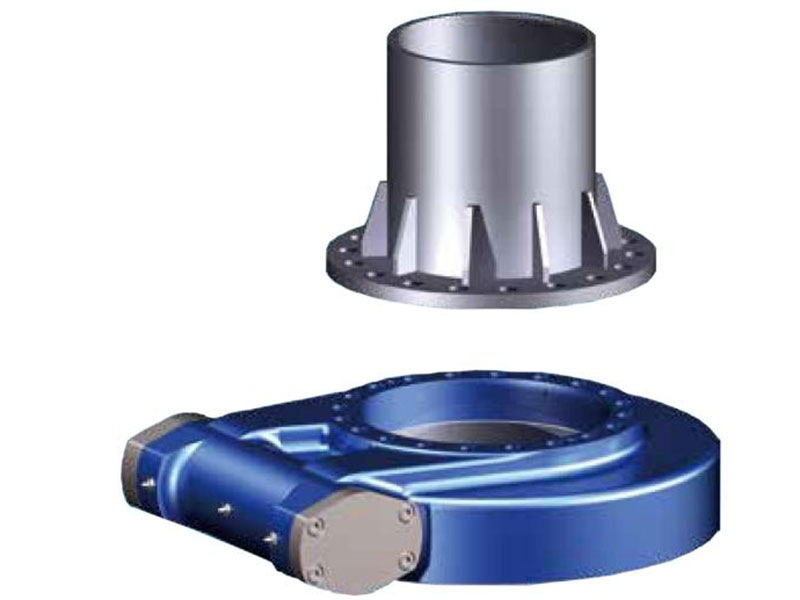

Horizontal Installation
In solar Aplicações, it is recommended to mount the slewing drives upside down on the azimuth axis for better protection and to add protection for the elevation axis.
-

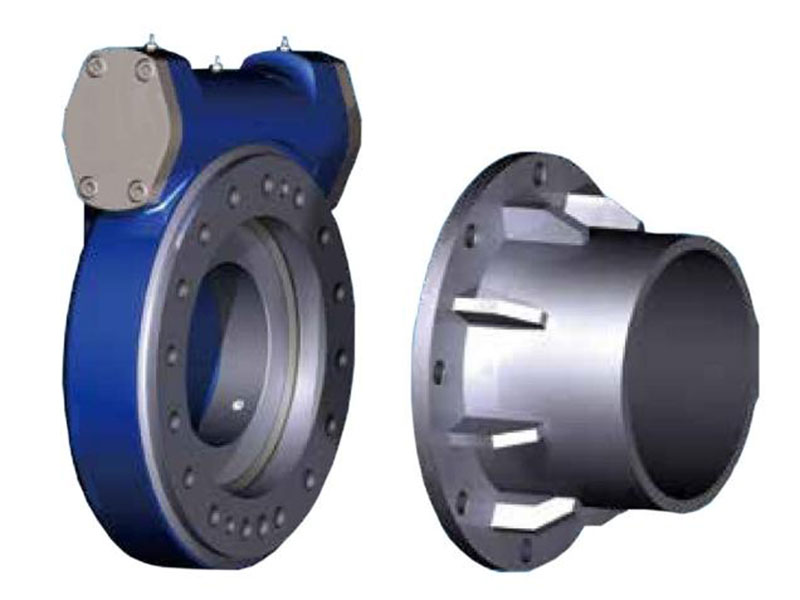

Vertical Installation
In solar Aplicações, it is recommended to install the slewing drives referanel to the attached drawing for better protection.
