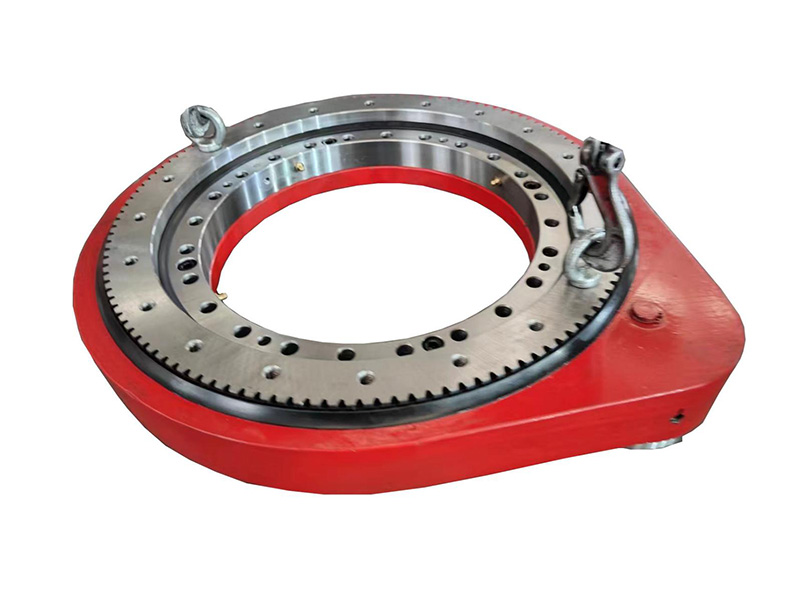

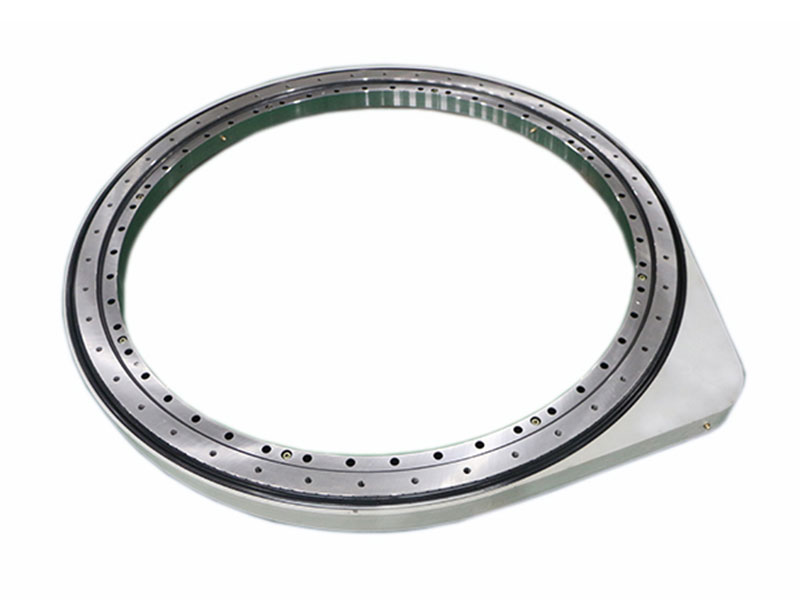

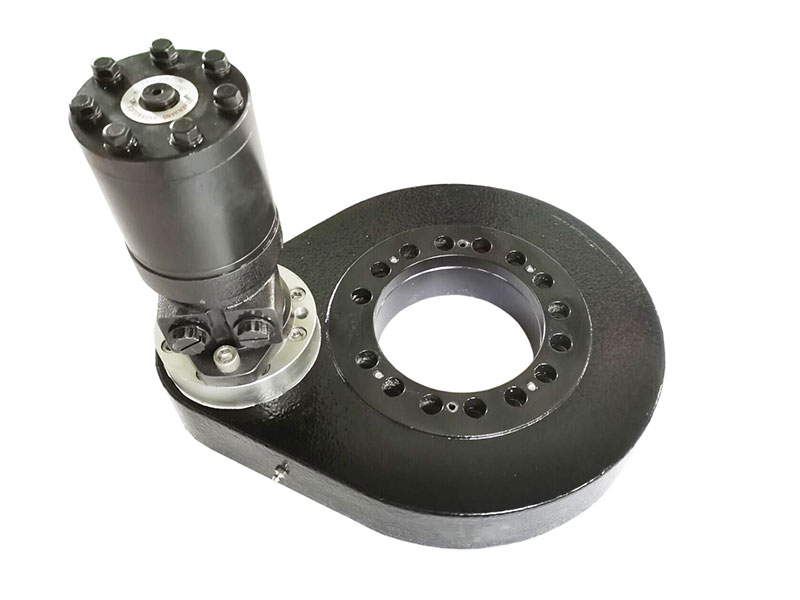

Acionamento de Orientação com Engrenagem Reta SP
Spur engrenagem Acionamento de Orientação, also known as engrenagem Acionamento de Orientação, is a rotary reducer with a certain reduction ratio. This rotary reducer is composed of Rolamento de Orientação, engrenagem, shell, adapter flange, support rolamento, and vedação carefully constructed through a Série of processes incluindo design, Fabricação, commissioning, as well as Montagem. It has the ability to bear axial force, radial force and overTorneamento moment at the same time. Built to withstand axial force, radial force, and overTorneamento moment all at once, this Acionamento de Orientação is made of 42CrMo aço liga forjados that undergo modulation (Q + T) treatment for an impressive Dureza range of 229-269 HB.
melhorar rolamento capacity, wear resistance, toughness, and impact resistance, the raceway and teeth are subjected to surface quenching treatment. Available in three Série with different module sizes - M=4 (light load), M=6 (medium load), and M=8 (heavy load) - the drive's Altura corresponds to the load range in ascending order from low to high. This versatile produto is perfect for Várias Aplicações such as solar and wind power geração, robots, Radar, slow and powerful raising equipment, lifting tools, and pinpoint CNC turntables.
- Solar and wind power geração equipment
- Robot
- Radar
- Low speed heavy loads
- Lifting equipment
- Precision CNC equipment
- Diâmetro Externo: 100 mm to 2000 mm
- anel material: 42CrMo / 50Mn / C45
- esfera/rolo material: GCr15
- Spacer material: Nylon 6 / Nylon 66
- Quenching Dureza of raceway: HRC55-62
- Tooth Tipo: Internal engrenagemed, External engrenagemed
The vedaçãoing of the Rolamento de Orientação, on the one hand, is prevenir the leakage of filled grease, on the other hand, is prevenir the outside dust, impurities and moisture from invading into the exterior of the rolamento and affecting its work. The vedaçãoing anel of ZZ Rolamento de Orientação is made of nitrile rubber material, which is resistant to high temperature and corrosion.
The raceways of Anel de Orientação rolamento are quenched on the surface. Its quenching Dureza is set at HRC55-62, ensuanel its effective hardening depth.
Due to the need to transmit force, Rolamentos de Orientação usually have teeth on one of the anels. The toothing is generally normalized or quenched and tempered. Depending on the application, the engrenagems can also be full-tooth hardened or single-tooth inductively hardened. Single tooth inductively hardening can be divided into full tooth hardening and tooth foot (flanks and base) hardening.
