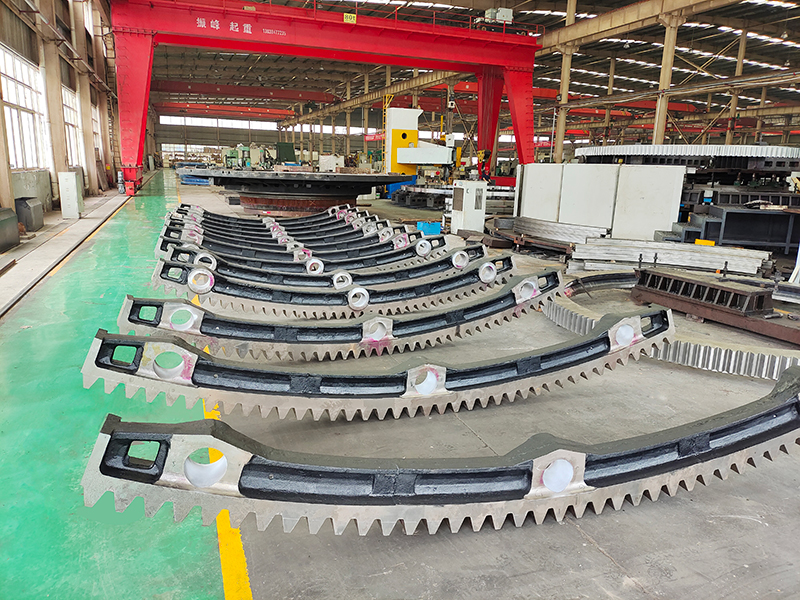

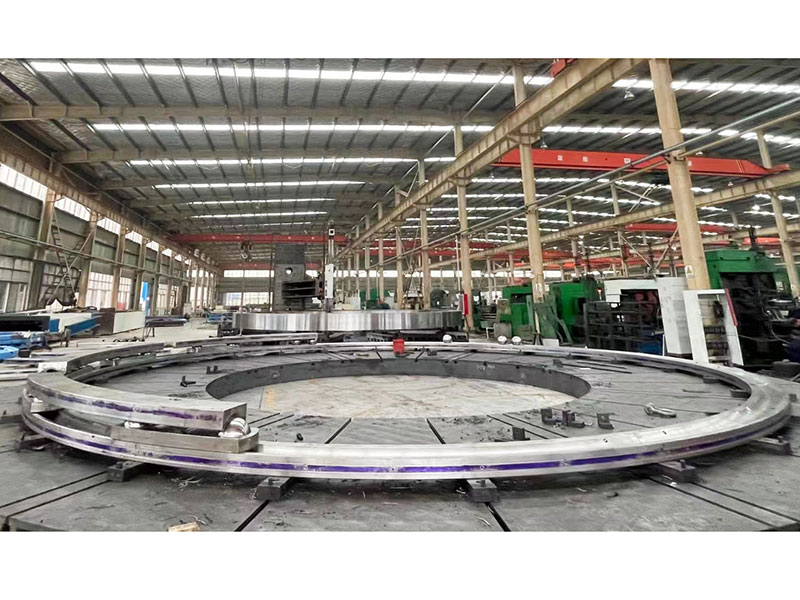

- Split engrenagem anel with 11,304mm Diâmetro Externo exportado para África do Sul
-
Diâmetro Externo: 11,304 mm
Saiba Mais
Peso: 9,200 kg
material: 42CrMo fundidos
Aplicação: Mineração equipment
País: África do Sul
-

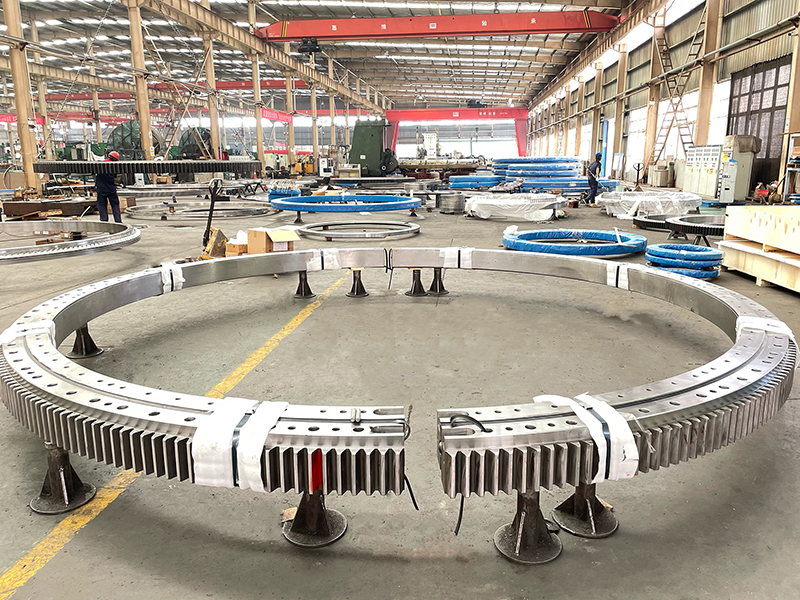

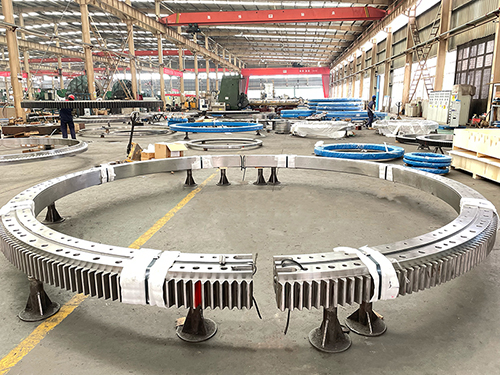

- personalizado 4768mm split Rolamento de Orientação for South Korean client
-
Diâmetro Externo: 4768mm
Saiba Mais
Peso: 4920kg
material: 42CrMo
Aplicação: fundação de estacas machinery
País: Coreia do Sul
-

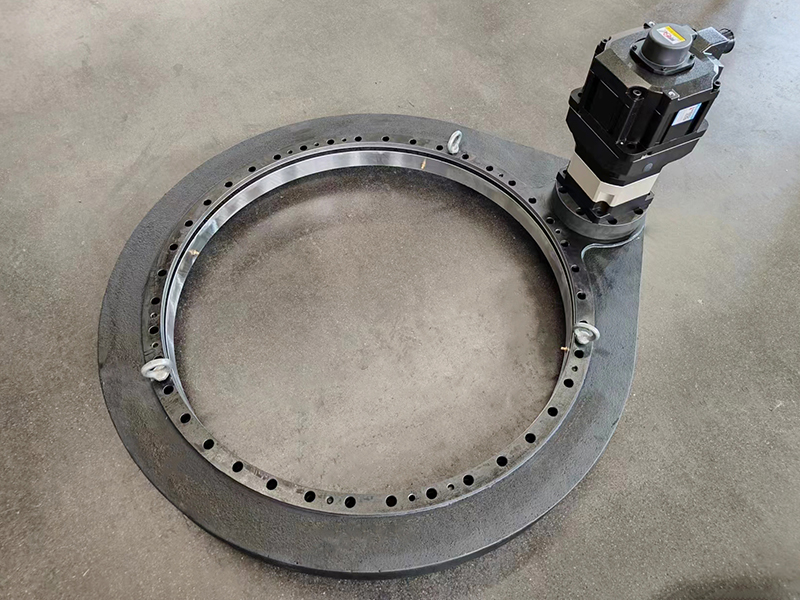

- Precision 1200mm Engrenagem externa slewing drive for sistemas de radar
-
Diâmetro Externo: 1200mm
Saiba Mais
Peso: 220kg
material: 42CrMo
Aplicação: sistemas de radar
-

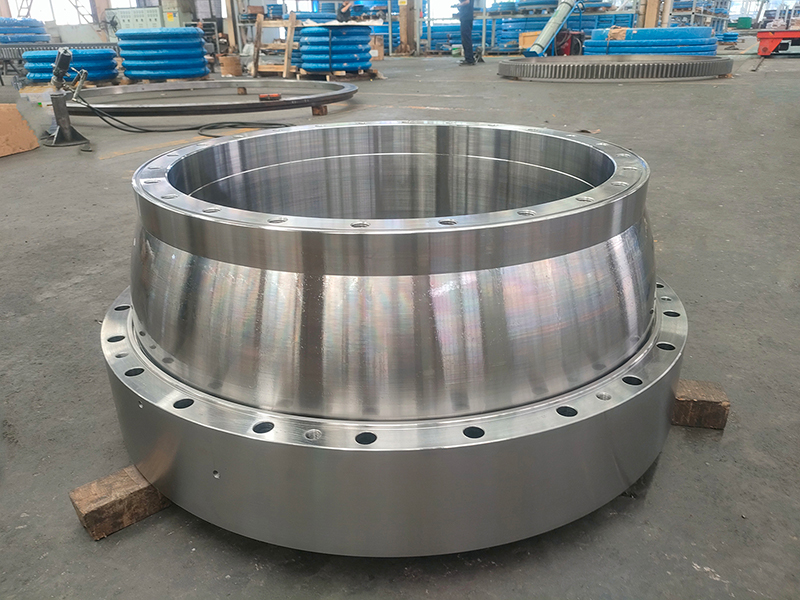

- Spherical plain rolamentos were com sucesso developed and exported
-
Modelo: QGJ-0600
Saiba Mais
Diâmetro Externo: 1020mm
Peso: 780kg
Aplicação: transmission of perfuração de túnel machines
-

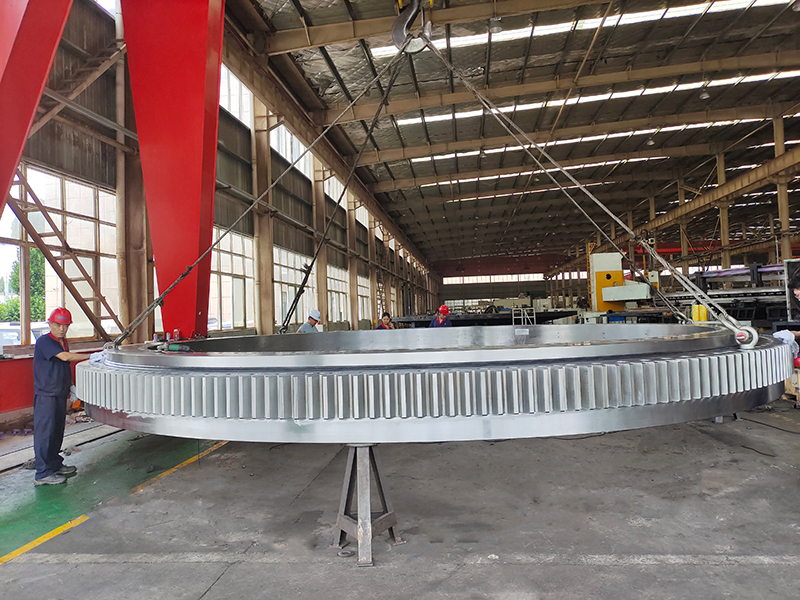

- especial rolamento de mesa rotativa for the harbor gantry crane was com sucesso delivered
-
Modelo: 132.85.7200.03
Saiba Mais
Diâmetro Externo: 7897mm
Peso: 47000kg
Aplicação: 1000t harbor gantry cranes
-

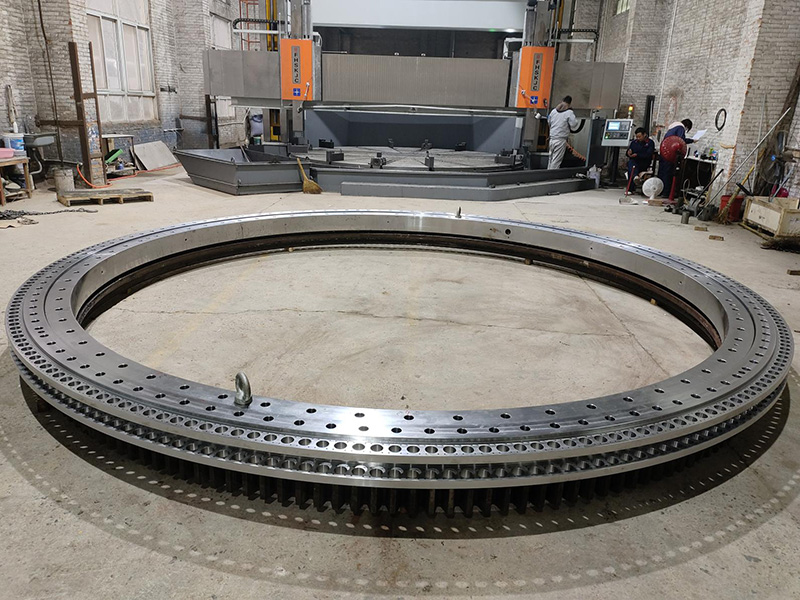

- Precision Anel de Orientação rolamento with an Diâmetro Externo of 5100mm was exportado para the USA
-
País: Estados Unidos
Saiba Mais
Produto: Alta precisão Anel de Orientação rolamento 010.50.4724
Diâmetro Externo: 5100mm
Aplicação: Médico machinery
Desafio: Maximum desvio radial ≤0.05 mm
-

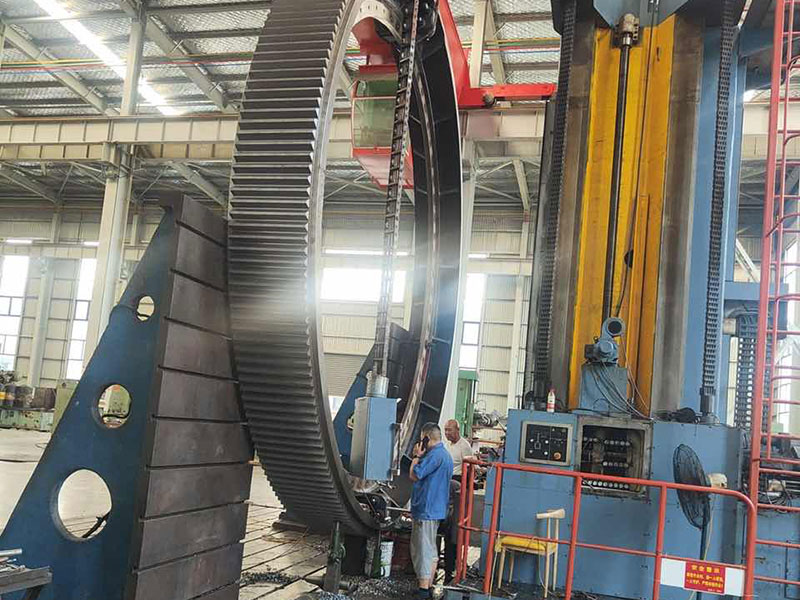

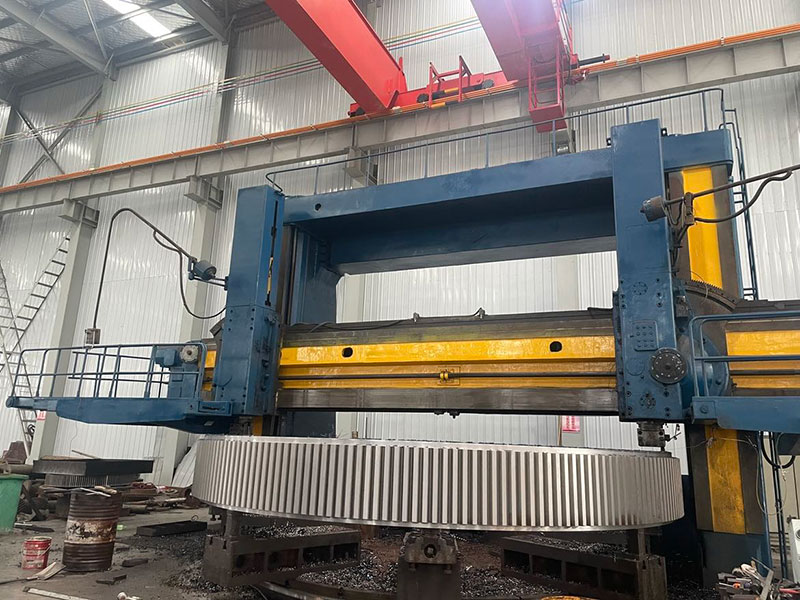

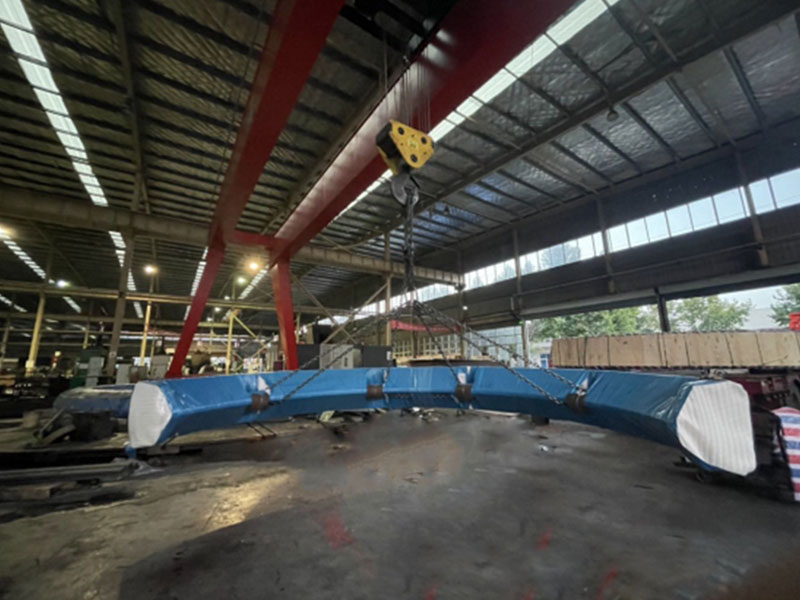

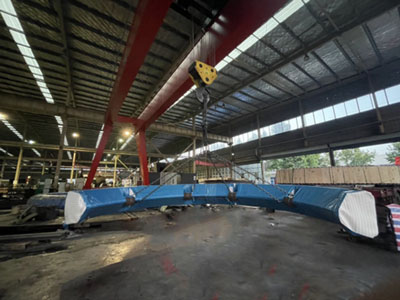

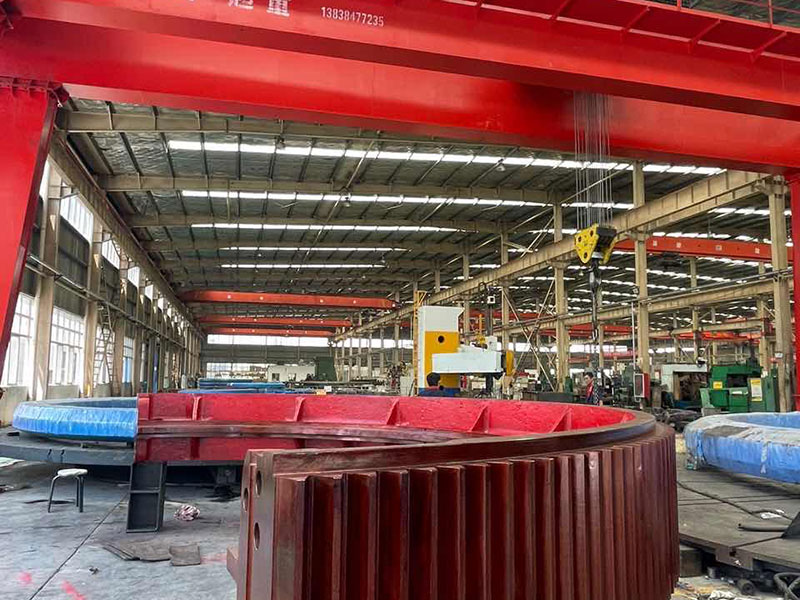

- A set of Anel de Orientação with an Diâmetro Externo of 6100mm was exportado para Southeast Asia
-
País: Southeast Asia
Saiba Mais
Produto: Anel de Orientação
Diâmetro Externo: 6100mm
Aplicação: esfera mill
On August 22, a set of Anel de Orientação with an Diâmetro Externo of 6100mm was exportado para Southeast Asia. This set a new record in exporting large diameter Anel de Orientação to Southeast Asia.
-

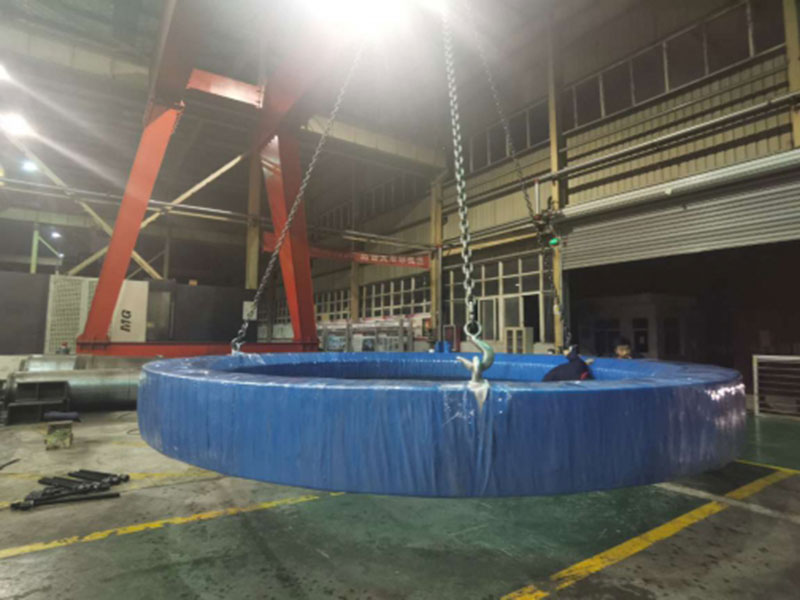

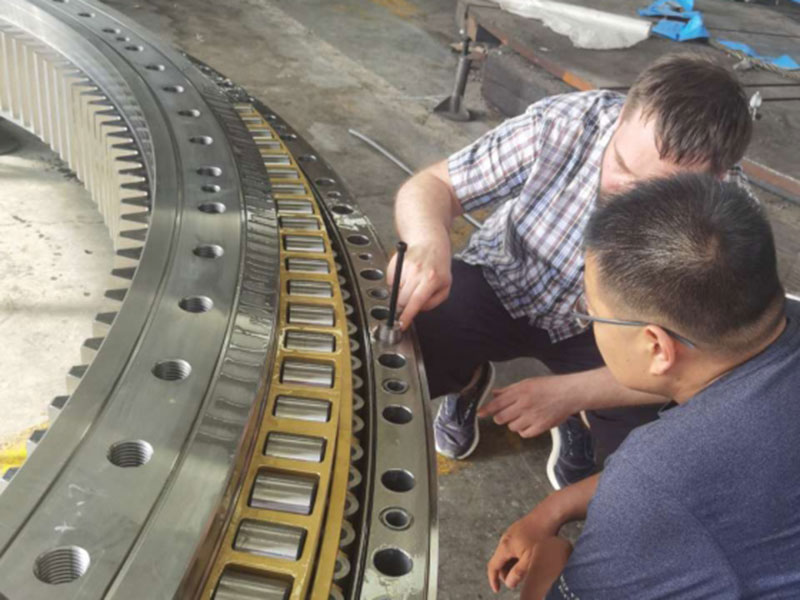

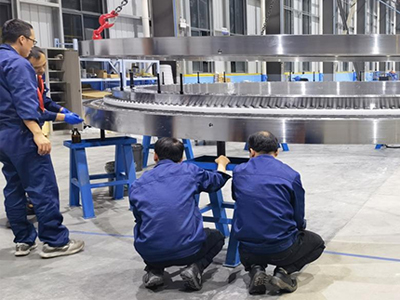

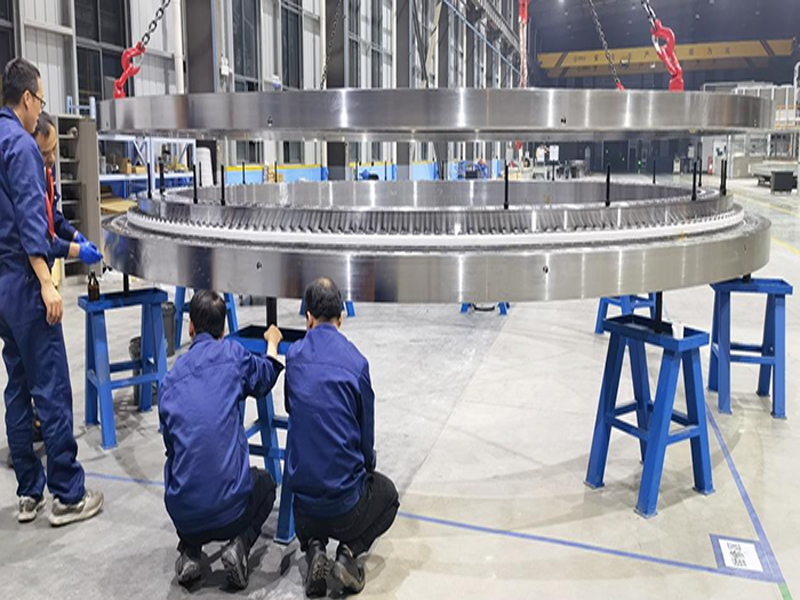

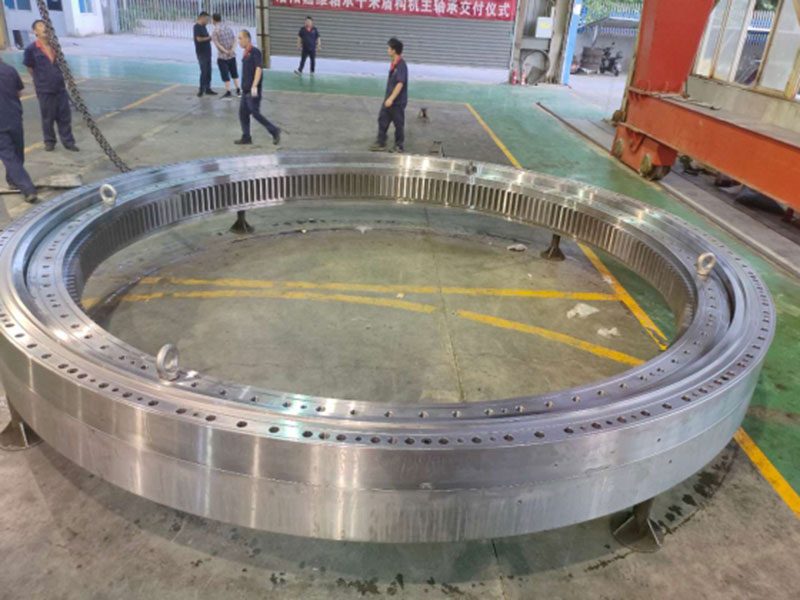

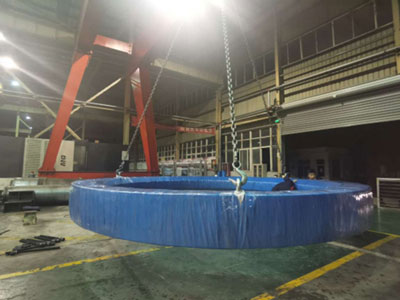

- Rolamentos de Orientação with an Diâmetro Externo of 5300mm was exportado para Russia
-
País: Russia
Saiba Mais
Produto: Rolamento de Orientação
Diâmetro Externo: 5300mm
Aplicação: perfuração de túnel machine
On July 1, a set of Rolamento de Orientação with an Diâmetro Externo of 5300mm was com sucesso delivered to Russia, which refreshed a record in exporting large diameter Rolamentos de Orientação to Eastern Europe and Central Asia. This Rolamento de Orientação Características 7 grades of engrenagem accuracy and 5300mm Diâmetro Externo, which was especially designed and manufactured for use in the perfuração de túnel machines with 10m in diameter.
-

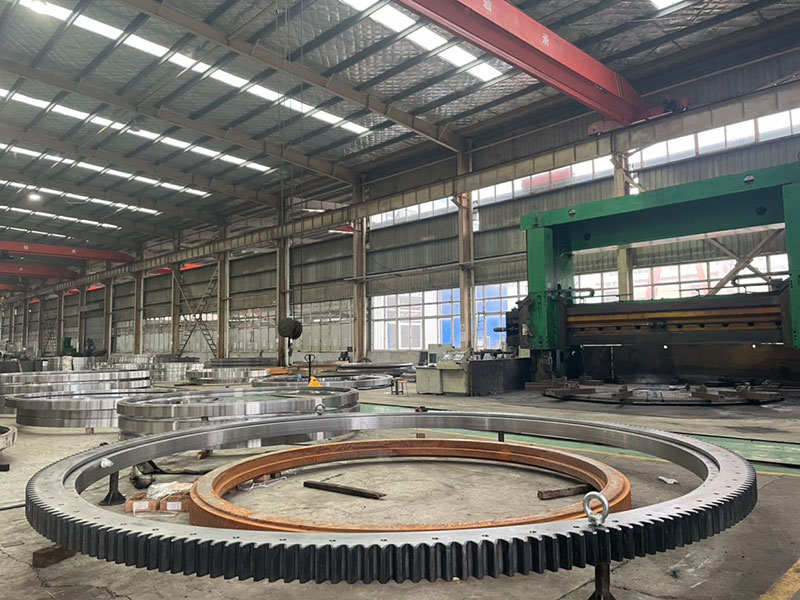

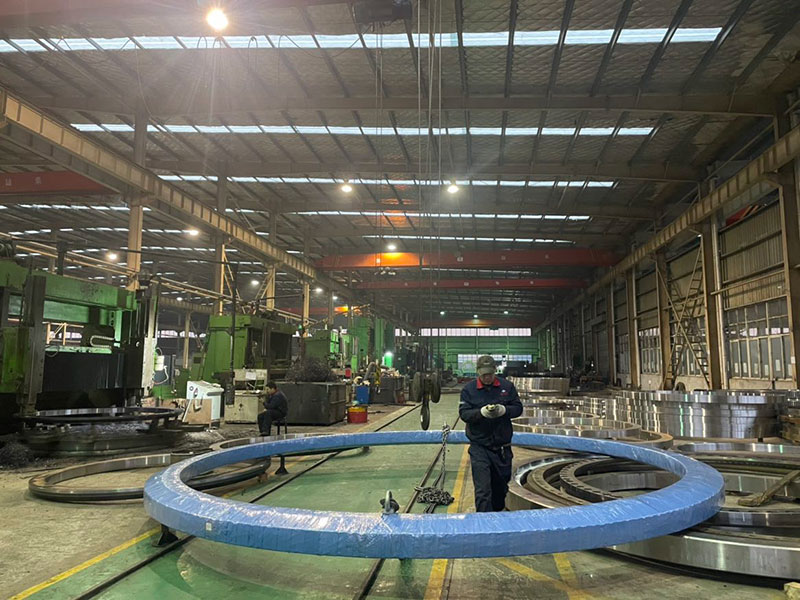

- Case 9
-
País: Estados Unidos
Produto: Single-row Rolamento de Orientação de Esferas de Contato de Quatro Pontos (external tooth)
Diâmetro Externo: 4500 mm
Aplicação: Amusement equipment
garantir that our rolamentos meet the highest safety standards, we carefully calculate the safety factor for each and every produto we produce. As we begin a new year, we want to extend our warmest wishes to all of our customers. We hope that your year is filled with good luck, happiness, and success. And we look forward to continuing to provide you with the highest quality rolamento Casos for all of your needs.
-
- Case 10
-
País: Reino Unido

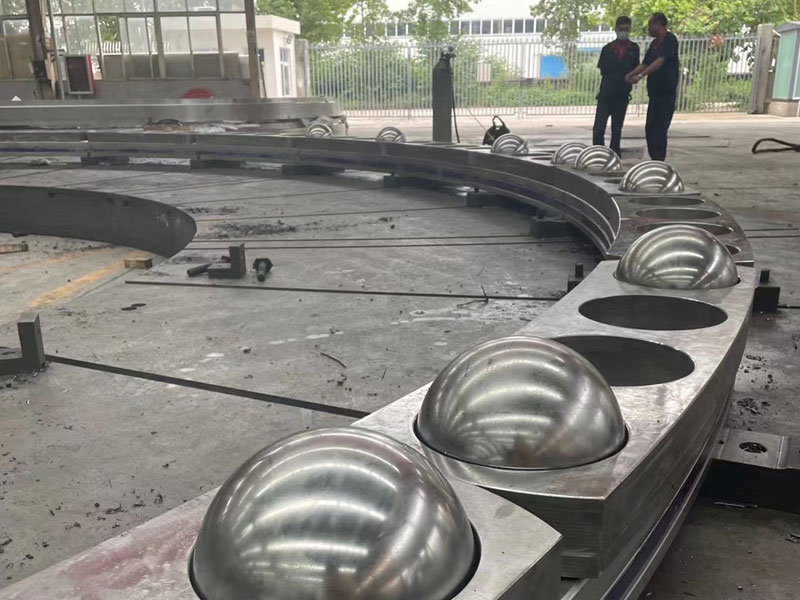

Produto: personalizado slew rolamento (Toothless)
Diâmetro Externo: 11,000mm
Aplicação: Escavadeira de usina elétrica
personalizado segmented slew rolamento with a diameter of 11 meters, shipping straight to UK customers.
Duanel a gorgeous summer, one of our old customers asked if we could produce rolamentos with a diameter of 11 meters. Back then, our maximum Diâmetro Externo of rolamento Produtos was 9 meters.But we didn’t shy away from tough requests. After a meeting with our engineers, researching Várias measures such as the safety factor, rolamento capacity, and overTorneamento moment, we concluded that it’s possible to customize the engrenagem anel, steel esfera, and cage. Ultimately, we accomplished the job and fully satisfied our customer's trust. This was a momentous occasion that allowed us to break the boundaries of large rolamento capabilities.
Segmented rolamento refers to the peças produced by processo eespecial design on the basis of integral rolamento. With low rotating resistance, stability of operation and a maximum temperature of 180℃, segmented rolamento are adequado para operations with low speed, heavy load, strong impact and poor vedaçãoing. The primary benefit of using this Tipo of rolamento is its easy installation and removal, which saves considerable time and money. As large and heavy rotating eixos fail to meet the required processing and transportation standards, the extensive use of heavy large segmented rolamentos is becoming Mais widespread.
-
- Case 11
-
País: Brazil
Produto: Esfera de quatro pontos de fileira única
Diâmetro Externo: 1800 mm
Aplicação: Excavator
The customer contacted us because the outer anel of their rolamento engrenagem had worn out badly. To create an preciso replacement, it is crucial to have precise dimensions and technical drawings. However, the customer did not have these available, which made the Fabricação process a difficult task.To help the customer, we provided a video technical training to assist with measuanel the necessary dimensions. After several back-and-forths, we succeeded in recreating the drawings in a month using our especialized knowledge and experience. Once the customer approved the drawings, we immediately began produtoion and worked quickly to complete the order in just 20 days to meet their urgent needs. Despite the challenges, thanks to the trust and support of our customer, the whole project went off without a hitch.
-
- Case 12
-
País: Russia

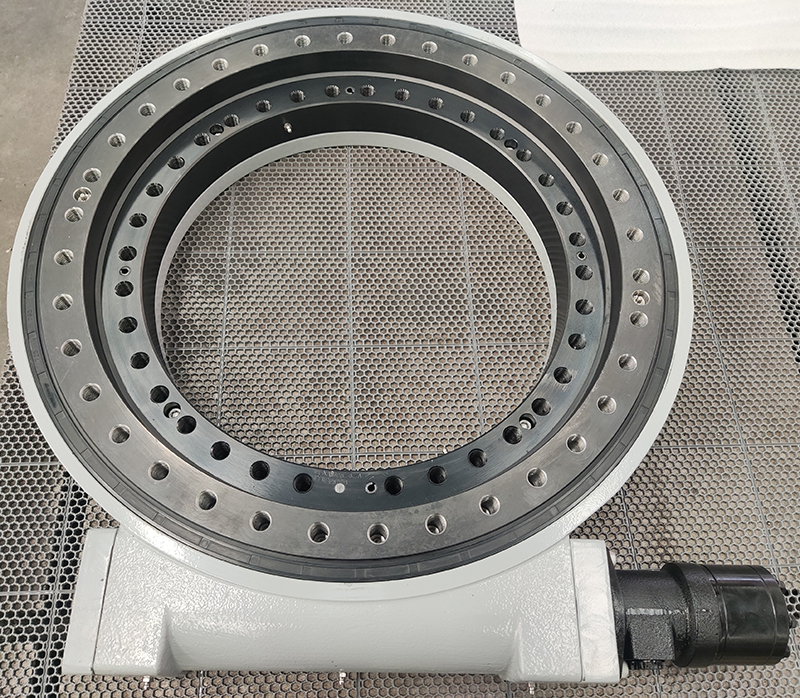

Produto: Swing Drive SE25
rolamento Diâmetro Externo: 868 mm
Aplicação: Automatic welding equipment
Recently, a customer approached us with their own motor and requested that we adapt the input eixo diameter and flange connection diameter of our swing drive accordingly. garantir a perfect fit, the customer provided us with their drawings and 3D Modelo of the engrenagembox, and we created appropriate SE25 drawings for their approval.However, duanel the drawing review process, the customer noticed that the requested transmission ratio was 150:1 while our drawing showed 104:1. We quickly addressed the issue by redesigning the drawing and customizing the rotary drive with the correct transmission ratio of 150:1. Our team ensured that the customer's needs were met before we proceeded with arranging produtoion.
-
- Case 13
-
País: Singapore

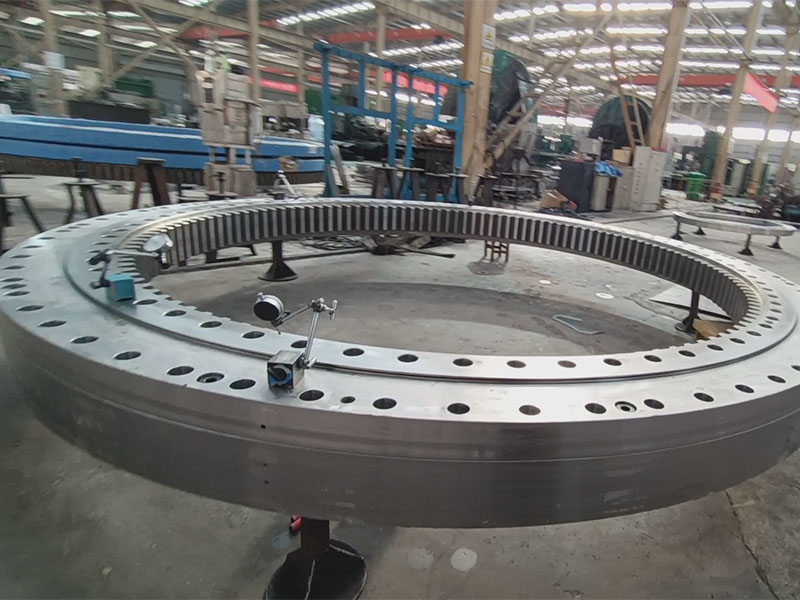

Produto: Rolamento de Rolos de Três Fileiras para Orientação.
Diâmetro Externo: 2850mm
Aplicação: Port machinery crane
Recently, a customer approached us for their new project which required the use of a Rolamento de Orientação. After understanding their needs for Diâmetro Externo, rolamento capacity, and working environment, we recommended a Rolamento de Rolos de Três Fileiras para Orientação that met their requirements.As the Rolamento de Orientação was non-standard, our team of experts designed a personalizado solution garantir the customer's needs were met. We drew up a design and calculated the load curve based on the customer's requirement for a slewing center of 2625 mm. Our experienced engineers conducted thorough tests and simulations garantir the final produto would be confiável and efficient for the customer's usage requirements.
-
- Case 14
-
País: Estados Unidos

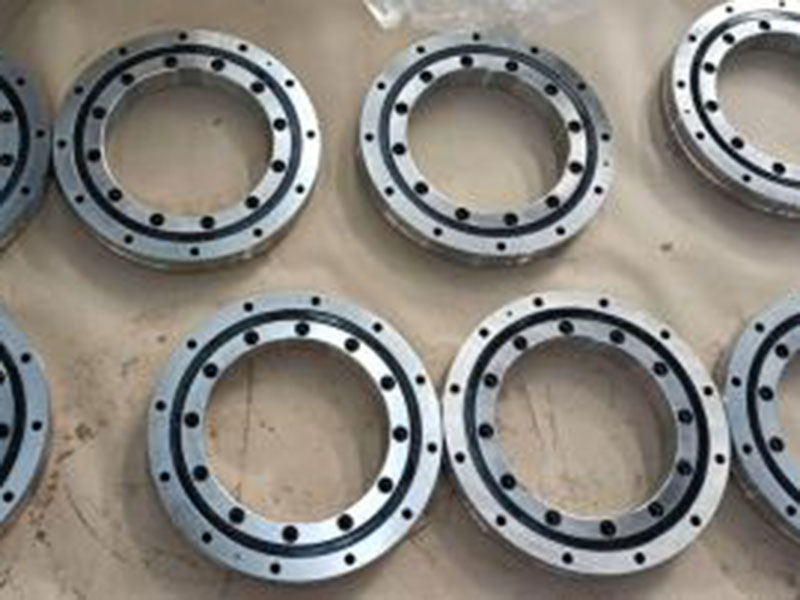

Produto: Rolamento de Precisão (cross rolamento de rolos)
Diâmetro Externo: 150 mm
Aplicação: CNC rotating equipment
A customer approached us with a request for a rolamento with an Diâmetro Externo of 150 mm, an Diâmetro Interno of 76 mm, and a precision grade of P4. Initially, we proposed our padrão RU Série rolamentos to the customer, but we discovered that the rolamento's Altura exceeded the Tamanho limitations.To provide the customer with the optimal solution, our team of experts worked on modifying the design, offeanel a high-precision, thin rolamento that met the customer's requirements. Our modified design was well-received upon review, and it resulted in a successful collaboration between the customer.
-
- Case 15
- Customer’s País: Germany
- Produto: ABS certified Rolamento de Rolos de Três Fileiras para Orientação (Modelo: 133.50.3550)
- The customer purchased the Rolamento de Orientação for Marinha usage. ZZ provided Rolamentos de Orientação with long Vida útil, high load carrying capability and Alta precisão to meet the customer’s requirements. The customer was very satisfied with our Rolamentos de Orientação and ordered six set of same rolamentos.
-
- Case 16
- Customer’s País: Czech
- Produto: Rolamento de Orientação for Mineração machinery
- In May 2016, ZZ manufactured and offered qualified Rolamentos de Orientação de acordo com the drawing the customer provided. The outstanding quality of our rolamentos deeply impressed the customer and we have kept the cooperation relationship since then.
-
- Case 17
- Customer’s País: Peru
- Produto: Rolamentos Personalizados for bucket wheel excavator
- In 2017, the customer’s original rolamento was badly damaged and needed a new rolamento. ZZ provided Rolamentos Personalizados for their bucket wheel excavator, which featured compact Construção, Peso leve, Alta precisão, and small installation clearance. By virtue of confiável rolamento quality, we have reached a long-term peçanership with the customer.
-
- Case 18
- Customer’s País: Sweden
- The Swedish customer made a field visit to ZZ to further understand our strengths. The customer spoke highly of our work environment, Fabricação strengths, produto quality and rigoroso Controle de Qualidade procedures.
Main Produtos
-

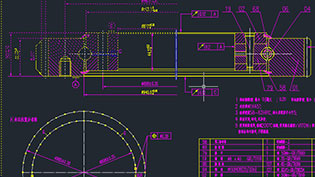

Rolamentos Personalizados
MoreNossa equipe dedicada está à disposição para oferecer ajuda e conhecimento especializado durante todo o processo. Seja para encomendar um produto da nossa linha padrão ou para desenvolver uma solução personalizada para o seu projeto atual, estamos prontos para auxiliá-lo em cada etapa.
-

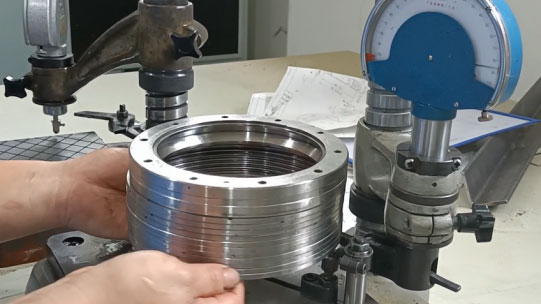

Fabricação Process
